TE-9QD
Precision Hot Air station without extractor desk

DISCONTINUED

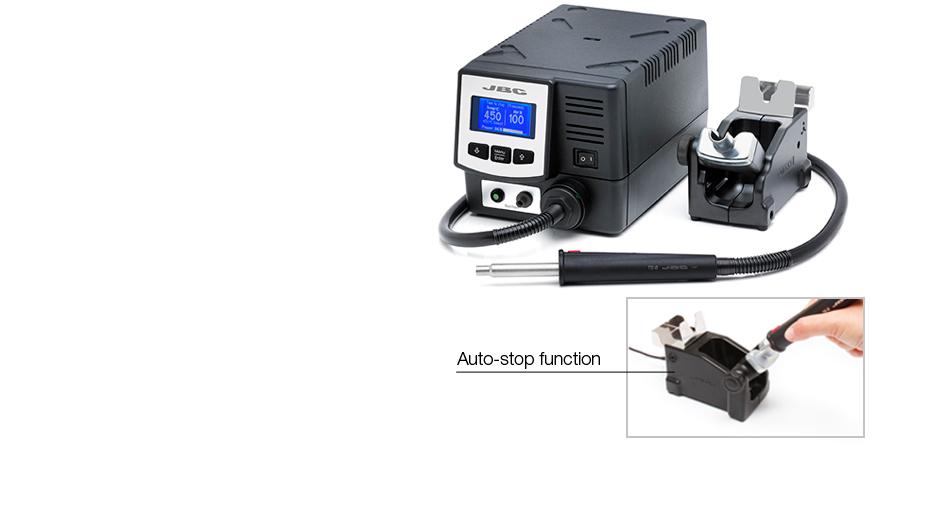

TE-9QD - Precision Hot Air station without extractor desk
TE is a precision hot air station for repairing small and medium SMD quickly and safely.

The unit features two work modes -manual or program- to manage efficiently the temperature and the hot air flow.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

The station works with the TE-TB heater and incorporates a USB connector (type B).



Net weight
3,87 kg (8.53lb)
Dimensions (Control Unit)
148 x 184 x 140 mm
5.83 x 7.24 x 5.51 in
Voltage
100V
Input fuse
8A
Nominal power
300W
Temperature selection
Room Temperature / 150-450 ºC (300-840 ºF)
Operating temp. range
10-40 ºC (50-104 ºF)
Air flow range
3-17 SLPM
Vacuum
30% / 228 mmHg / 9 inHg
Rated current
3A (230V), 6A (120V), 7A (100V)
ESD safe
Package weight
4,95 kg (10.91lb)
Package dimensions
474 x 368 x 195 mm
18.66 x 14.49 x 7.68 in
