    • Hot Air Stations

    The highest quality
    contactless desoldering

    The highest quality
    contactless desoldering

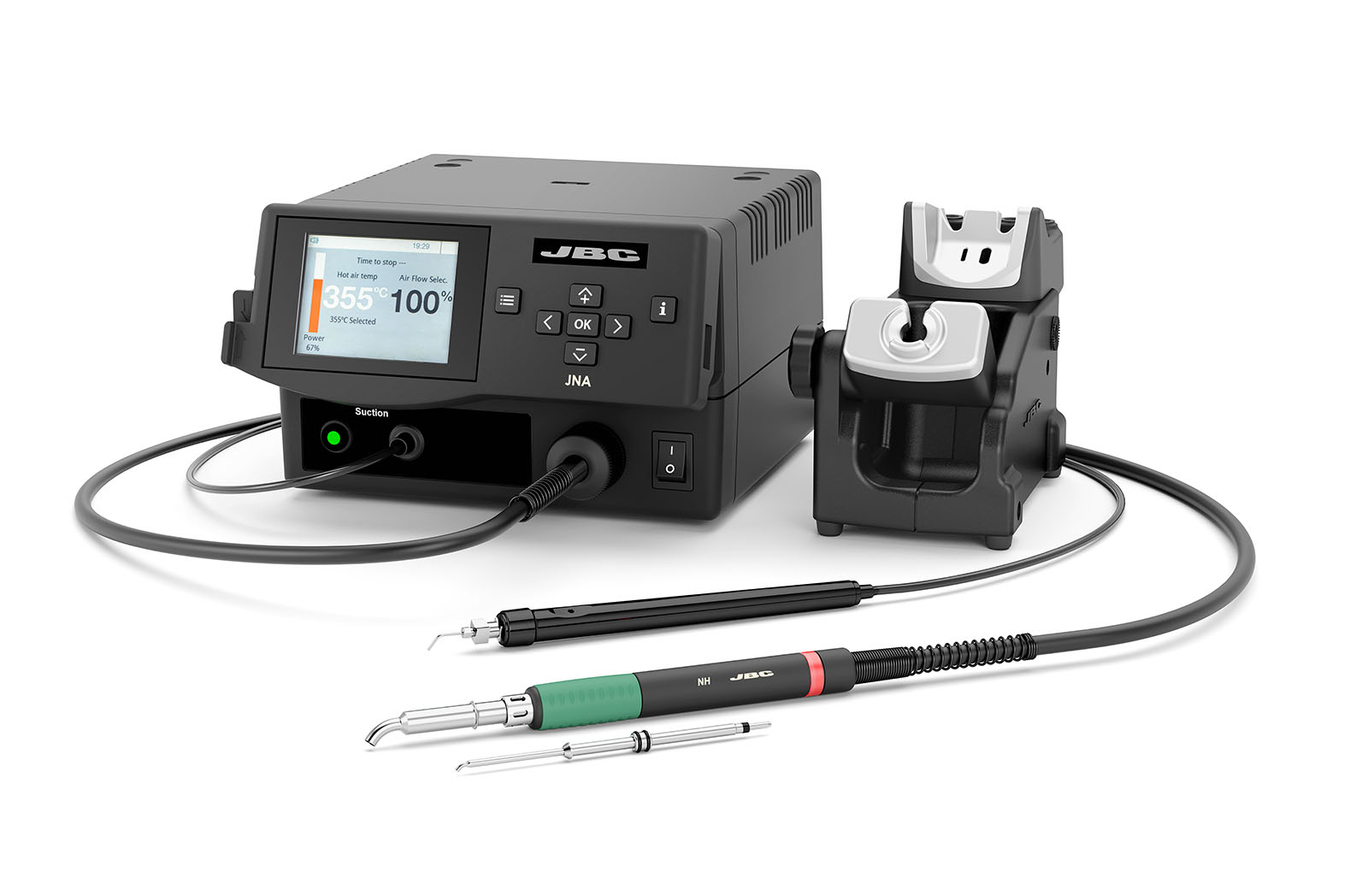

    JNA High-Precision Hot Air Station

    JNA Station

    High-Precision Hot Air

    The perfect station for
    high-precision reworking even under
    the magnifying glass

    TESE Precision Hot Air Station

    TESE Station

    Precision Hot Air

    This station is capable of reworking
    small and medium SMDs.


    JTSE Power Hot Air Station

    JTSE Station

    Power Hot Air

    This station is capable of reworking
    all types of SMDs.


    SRS SMD Rework System

    SRS System

    SMD Rework

    For full control over
    SMDs rework processes.


    Hot Air Station - a tool for reworking all types of SMDs

    Hot Air Stations heat up quickly and evenly to reflow the solder to either attach or remove the component to or from the PCB. Hot air is delivered through the hose, making it possible to rework any type of SMDs.

    JBC Hot Air Stations have the capability of controlling precise temperature and airflow.

    Hot Air Stations heat up quickly and evenly to reflow the solder to either attach or remove the component to or from the PCB. Hot air is delivered through the hose, making it possible to rework any type of SMDs.

    JBC Hot Air Stations have the capability of controlling precise temperature and airflow.

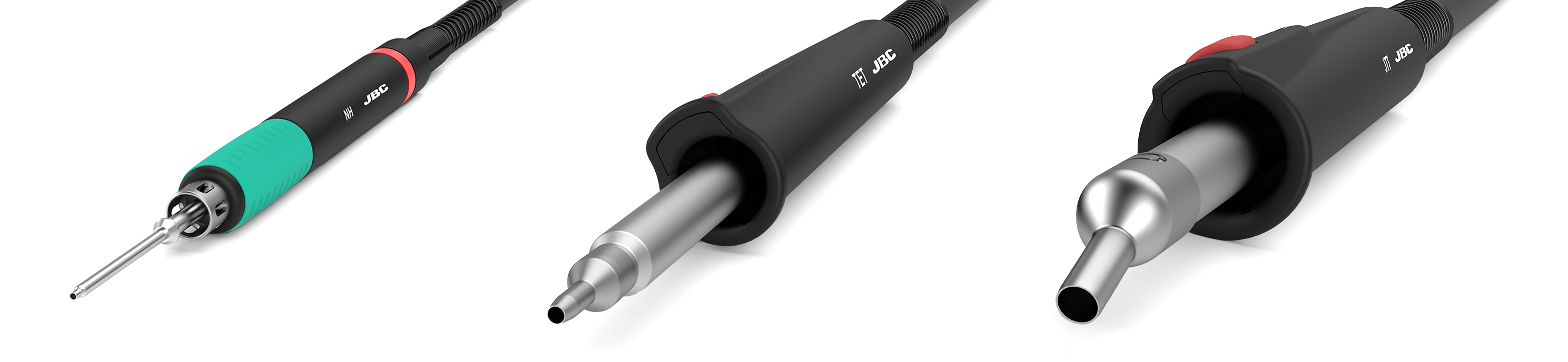

    JBC Hot Air Stations offer three different Hose Sets, depending on your needs

    JBC High Precision

    JBC Hot Air Stations offer three different Hose Sets, depending on your needs

    Desoldering process using JBC Hot Air Stations


    1 Positioning

    Choose the protector and tripod which best fits the component. Activate the suction pump and push the extractor to the component.

    2 Heating

    While you apply heat to the component, the surrounding elements are protected.

    3 Extracting

    Automatic withdrawal of the desoldered component.

    Desoldering process using JBC Hot Air Stations

    Hot Air Stations use hot air to quickly and evenly heat up the solder attaching the component to the PCB. The hose sets toss the hot air to the component or components to be reworked.

    Because only heated air is in contact with the board surface, hot air also helps prevent damage to the surface of the circuit board. In addition, because the hot air is targeted precisely, the rework station can double as a soldering station to attach new components to the surface of a PCB or an HDI circuit board.

    Desoldering process using an extractor - for TET and JTT Heaters Hose Set

    Personalize your soldering process parameters with JBC Profiles



    In order to work with profiles, it is essential to use Rework Arms.

    Up to 25 configurable temperature profiles can be created and stored to avoid termal shock to specific components during the rework process.

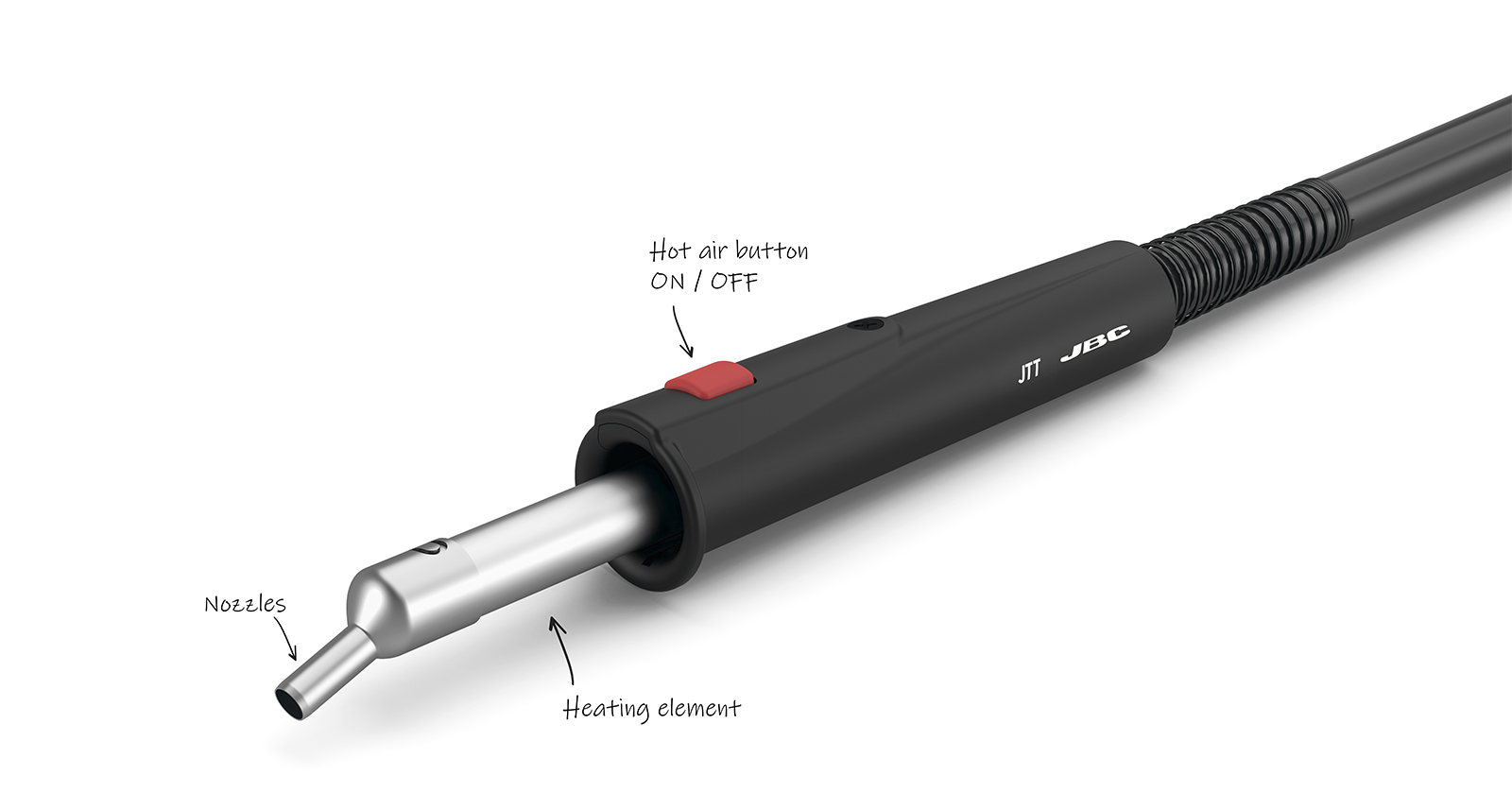

    The perfect combination of heating
    element and nozzles allows you to concentrate
    the heat on the selected component.

    Our range of hot air tools allows you to repair
    all types of SMDs quickly and safely,
    even the biggest QFPs and PLCCs.

    The perfect combination of heating
    element and nozzles allows you to concentrate
    the heat on the selected component.

    Our range of hot air tools allows you to repair all types
    of SMDs quickly and safely, even the biggest QFPs
    and PLCCs.

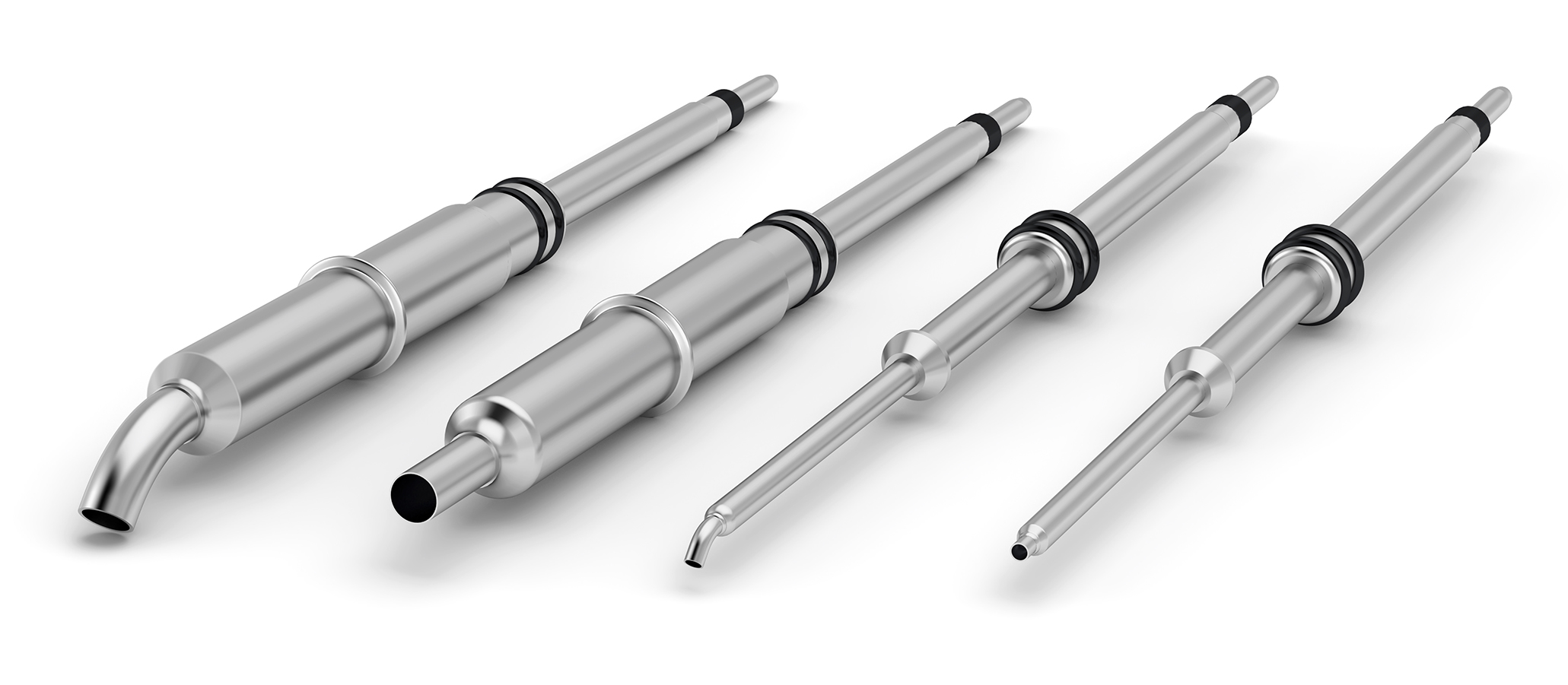

    Cartridges for NH

    It works with JNA High-Precision Hot Air Station, which allows regulation of both flow and temperature at very low levels.

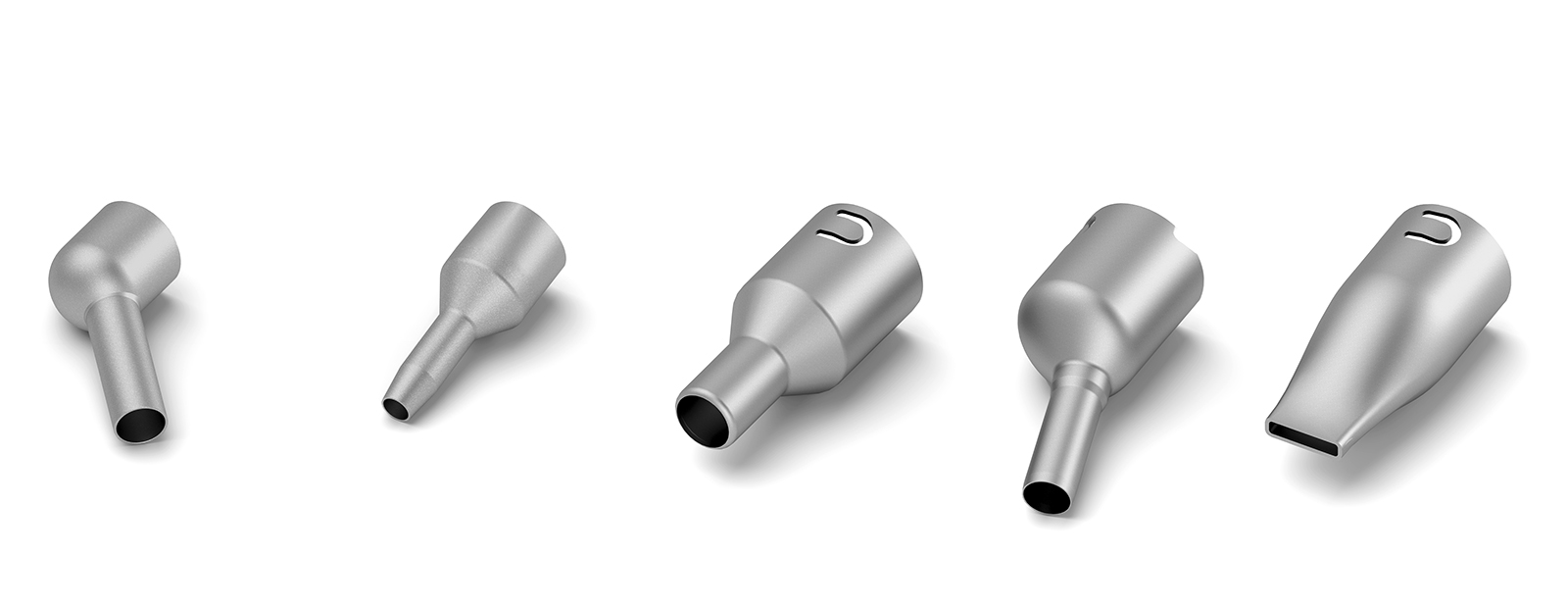

    Nozzles for TET & JTT

    Nozzles direct the heat to a particular
    area so that adjacent components are protected.
    The range features different shapes and diameters to
    regulate the hot air flow.
    All models are easily interchangeable.

    Which accessory is the best for
    your desoldering process

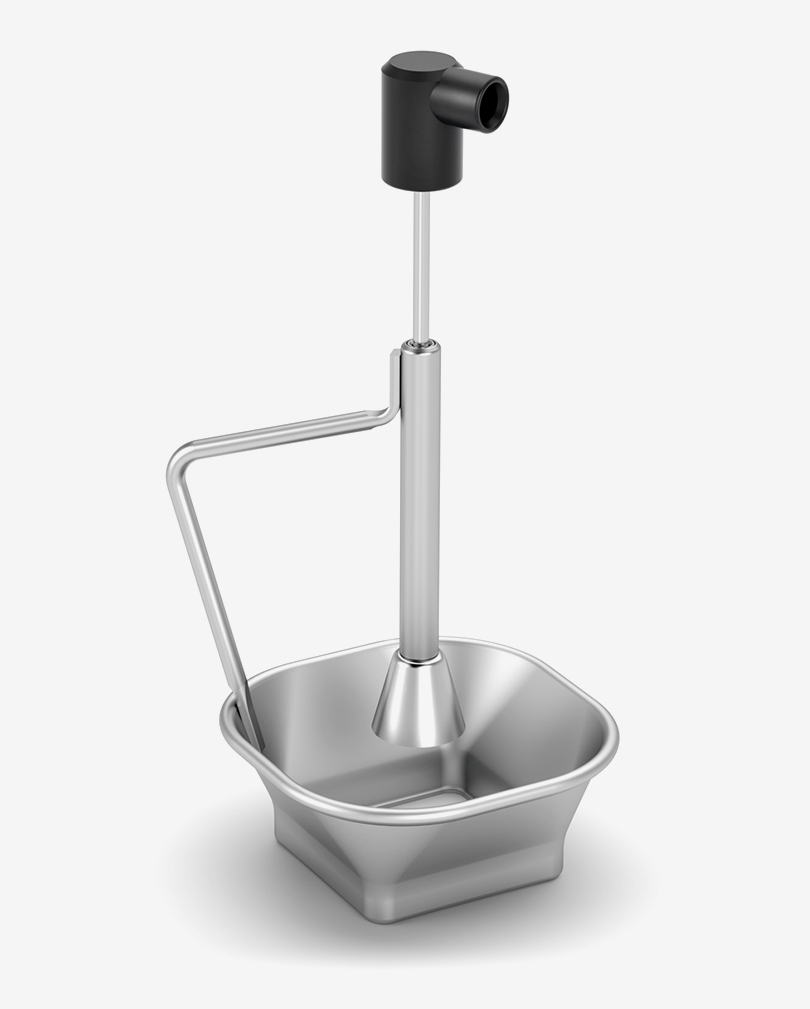

    Extractors, Tripods & Protectors

    Extractors protect surrounding components by concentrating heat on the component to be desoldered.

    The ideal accessory for TET and JTT Heater Hose Sets

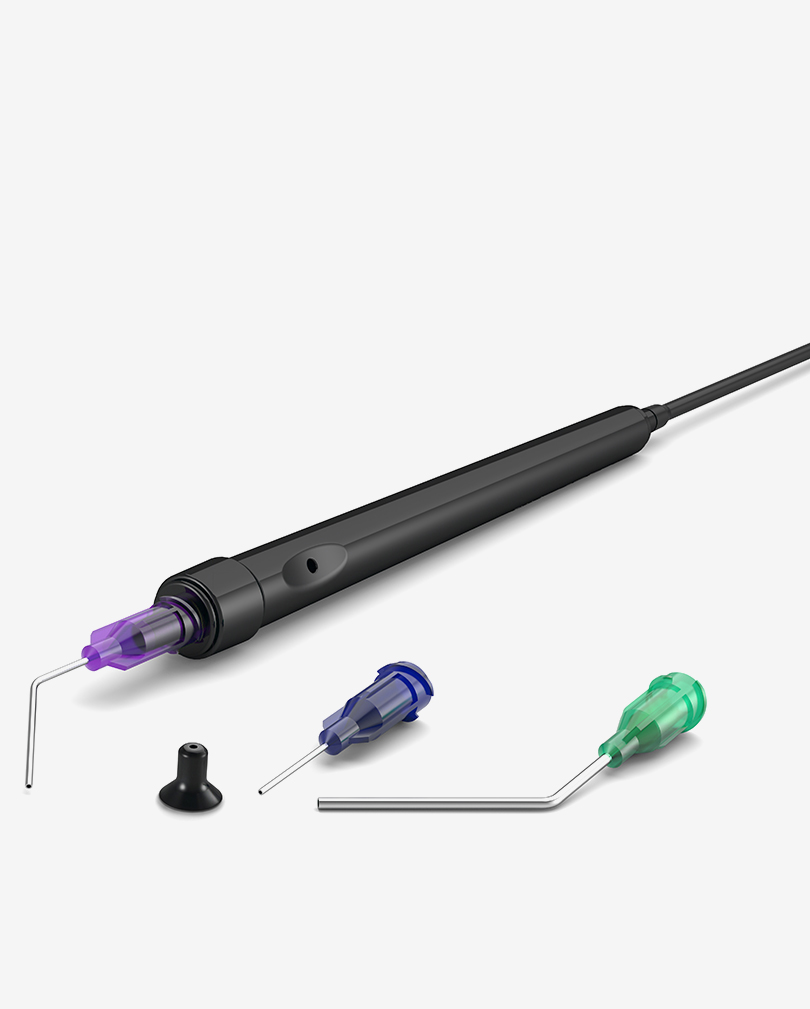

    Pick & Place

    This tool helps you easily place and remove SMDs of different sizes.

    There are different cups to fit the size of any component.

    Included in all JBC Hot Air Stations.



    Rework Arms

    This accessory supports TET or JTT Heater maintaining the position and the distance to the component and leaves the operator’s hands free.

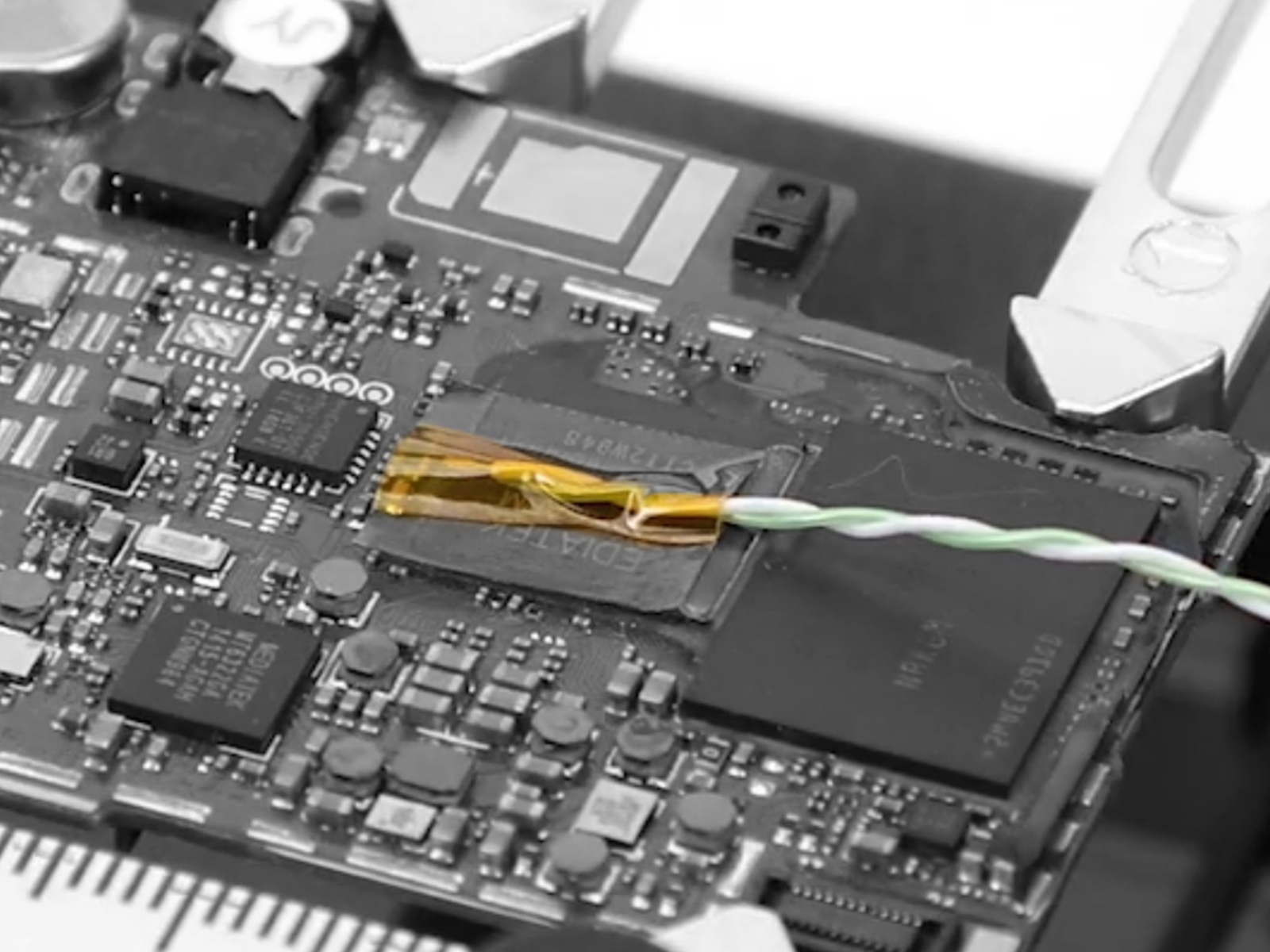

    Using Thermocouple Type K

    Attach an external Type K Thermocouple and TC so that you are able to set either a Regulation or Protection Mode.

    Regulation Mode provides a high-precise close-loop to automatically maintain the external Thermocouple (TC) temperature.

    Protection Mode is used to protect any heat sensitive areas or components. The station cuts the air supply off when the TC temperature is reached.

    Thermocouple Type K is included in TESE & JTSE Stations.

    Using Thermocouple Type K

    Attach an external Type K Thermocouple and TC so that you are able to set either a Regulation or Protection Mode.

    Regulation Mode provides a high-precise close-loop to automatically maintain the external Thermocouple (TC) temperature.

    Protection Mode is used to protect any heat sensitive areas or components. The station cuts the air supply off when the TC temperature is reached.

    Thermocouple Type K is included in TESE & JTSE Stations.

    Auto-Start / Stop Function

    JNA has the Auto-Start Function, that it means the station is turned on when the tool is lifted from the stand.

    Auto-Stop Function, as a safety measure in all Hot Air stations, guarantees that the heat is automatically cut off when the tool is in the stand.

    In addition, it saves power and lengthens the heater life.

    JNA features Auto-Start Function, which means the station is turned on when the tool is lifted from the stand.

    Auto-Stop Function, as a safety measure in all Hot Air Stations, guarantees that the heat is automatically cut off when the tool is in the stand.

    In addition, it saves power and lengthens the heater life.

    Auto-Start/Stop Function

    JNA features Auto-Start Function, which means the station is turned on when the tool is lifted from the stand.

    Auto-Stop Function, as a safety measure in all Hot Air Stations, guarantees that the heat is automatically cut off when the tool is in the stand.

    In addition, it saves power and lengthens the heater life.

    Fume Extractor Connection

    JBC Stations feature a FAE / ROBOT port to the Fume Extractor in order to automatically activate extraction when the tools are in use.

    Fume Extractor Connection

    JBC Stations feature a FAE / ROBOT port to the Fume Extractor in order to automatically activate extraction when the tools are in use.

    Station Range

    JNA High Precision Hot Air Station

    JNA


    High-Precision
    Hot Air Station


    TESE Precision Hot Air Station

    TESE


    Precision
    Hot Air Station


    JTSE Power Hot Air Station

    JTSE


    Power
    Hot Air Station


    Tool NH High-Precision Heater Hose Set TET Precision Heater Hose Set JTT Heater Hose Set
    Compatible Cartridges J125 and J325 Cartridges No Cartridges No Cartridges
    Job Type Repair SMDs even under a magnifying glass Repair small and medium-sized SMDs Repair medium-sized and large SMDs
    Sleep & Hibernation Modes
    Cartridge / Nozzle Holder
    Cartridge / Nozzle Extractor
    Pedal Connector
    Connection Station-PC USB-B USB-B USB-B
    Update Files USB-A USB-A USB-A
    Peripherals Pedals FAE / Robot/ Pedals FAE / Robot/ Pedals
    Thermocouple Type K
    Nominal Power 70 W 300 W 700 W
    Ambient Operating Temperature 10 to 50 ºC / 50 to 120 ºF 10 to 50 ºC / 50 to 120 ºF 10 to 50 ºC / 50 to 120 ºF
    Selectable Temperatures 150 to 450 ºC / 300-840 ºF 150 to 450 ºC / 300-840 ºF 150 to 450 ºC / 300-840 ºF
    Air Flow 0.15 - 2.5 SLPM 2 to 17 SLPM 5 to 50 SLPM
    Temperature Profiles
    Operating Modes Heating / Profiles / Cooling Heating / Profiles / Cooling Heating / Profiles / Cooling
    Vacuum 53% / 397 mmHg / 15.6 inHg 30% / 228 mmHg / 9 inHg 30% / 228 mmHg / 9 inHg
