R245P001Chisel Cartridge 1 x 0.5 mm

R245P001
Chisel Cartridge 1 x 0.5 mm

These cartridges are designed for the use in Automated Soldering Processes.

The new cartridge design includes a square cross-section that centers the cartridge perfectly into the Soldering Irons and guarantees precise vertical positioning.

Due to this square cross-section, the cartridge can be used in 4 different positions, which can be changed in 90º steps.

Cartridge range R245 are available in different shapes and sizes and have the same benefits as all the others cartridge ranges.

It works with the Soldering Irons TR245 and TRA245.

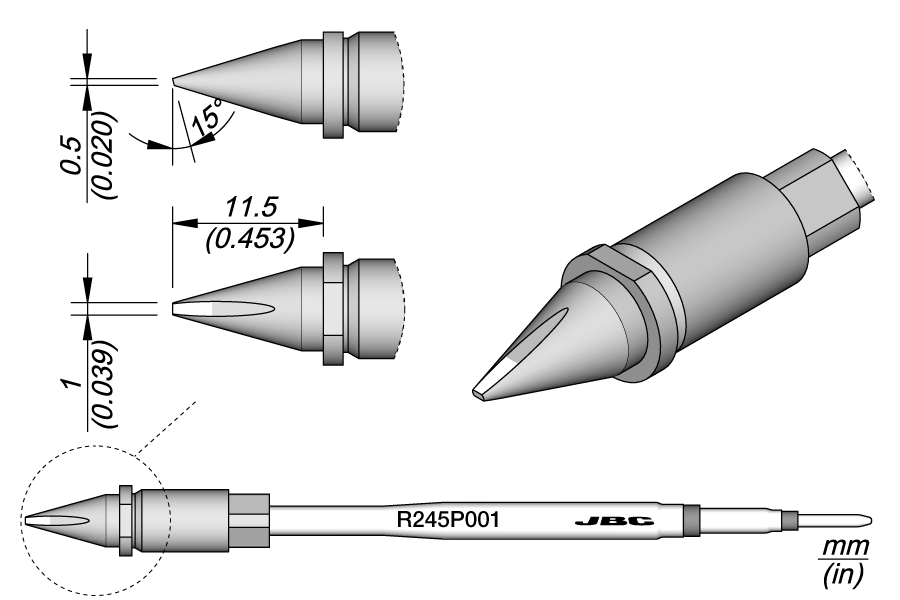

R245P001 - Chisel Cartridge 1 x 0.5 mm
R245P001
Net weight
0,02 kg (0.04lb)
Weight and dimensions
Package
183 x 60 x 34 mm / 0.03 kg.
7.20 x 2.36 x 1.34 in / 0.06 lb.
