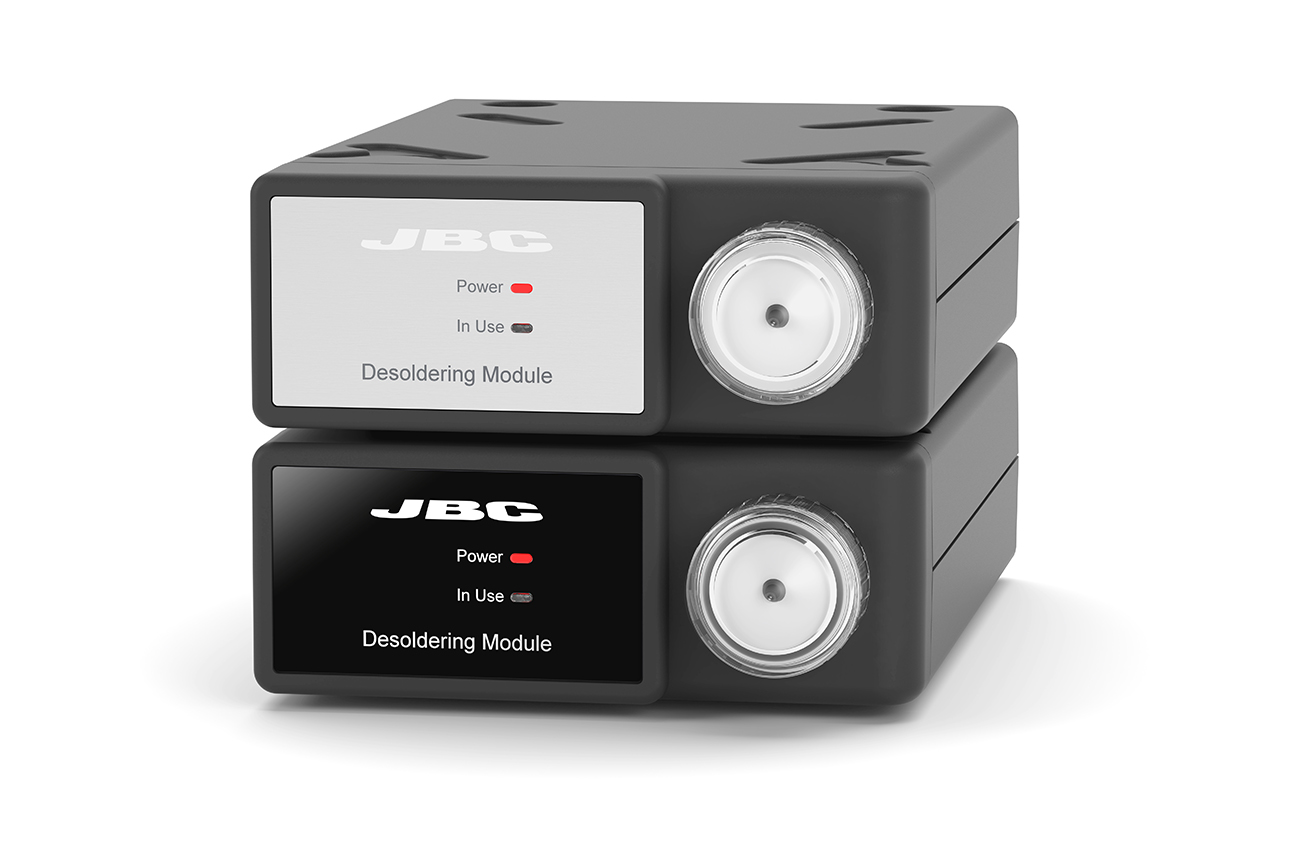

MS / MSE Modules
Electric Desoldering

Electric Desoldering Modules are indispensable for a complete desoldering process.

Their optimized electronic suction system creates a vacuum peak at the startup in order to collect the solder before it cools down.

They are supplied with easy-to-change filters for extending the life of the module.

They work with the comfortable DS360 Micro Desoldering Iron or DR560 Desoldering Iron and their corresponding tips.

• MSE works with DDE or DME Control Units.

• MS works with CS Precision Desoldering Station, DI Control Unit and the discontinued DD or DM Control Units.
ELECTRICMODULES - Electric Desoldering Modules
MS-A
For DI & CS
MSE-A
For DDE & DME
1
MS-A Electric Desoldering Module
1
MSE Electric Desoldering Module
Vacuum
75% / 570mmHg / 22.4 inHg
Flow rate
9 SLPM
Ambient Operating Temp
10 - 40 ºC / 50 - 104 ºF
Pedal connector
Yes
ESD safe
Meet ANSI/ESD S20.20-2021
Weight and dimensions
Control Unit
225 x 145 x 55 mm / 1.19 kg.
8.86 x 5.71 x 2.17 in / 2.63 lb.
Package
280 x 195 x 115 mm / 1.50 kg.
11.02 x 7.68 x 4.53 in / 3.31 lb.
