DISCONTINUED

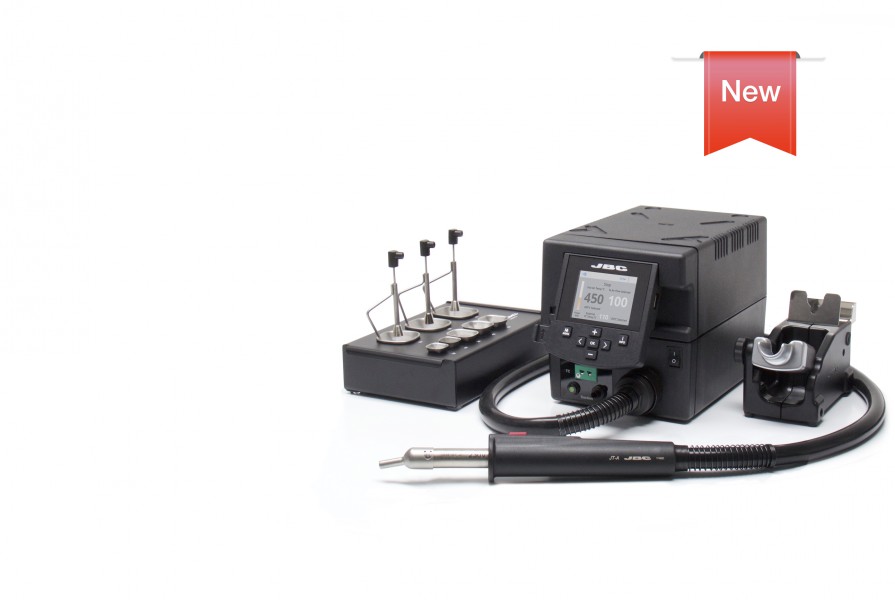

JTSE
Power Hot Air Station

This is a high powered hot air station for repairing all types of SMDs quickly and safely, including the biggest QFPs and PLCCs.
Profiles Mode It features along with the manual mode a powerful functionality of profiles to perform rework tasks with the maximum precision.You can control temperature values and air flow rate by creating up to 25 profiles.
Control Thermocouple Closed-loop control with external thermocouple provides precise temperature control of the component/PCB, regardless of the distance to the heater. It helps to protect the components or a specific area on the PCB.
Auto-stop Function
A safety measure which ensures the heat is automatically cut off when the tool is in the JT-SE stand.
It comes with a complete extractor desk, tripods, protectors & extractors listed below.
Available languages: English, Spanish, German, French, Italian, Portuguese, Japanese, Chinese, Russian and Korean.



JTSE-1A - Hot Air station
Selectable parameters
Selectable temperature
150 to 450 ºC (300-840 ºF)
Air flow
5 to 50 SLPM
Temperature profiles
Design specific thermal profiles for automatic SMD soldering. Obtain repeatable results and avoid thermal shock by controlling the temperature throughout the different phases of the process (ramp up rate, peak temperature and ramp down rate).
Up to 25 fully configurable soldering profiles can be stored.
Operating modes
Heating / Cooling
Others
Type K TC connector
Plug an external TC to the controller and place it close to the component to be soldered or reworked to have the most precise temperature control regardless of the distance to the nozzle. It can be used both for Control and Protection purposes.
Vacuum
30% / 228 mmHg / 9 inHg
Connectivity
USB-B
Software PC
USB-A
Firmware update,
Graphics/Profiles management
Robot
RS-232 remote control
Pedal connector
Optional tool control
Aux. connector
Peripheral expansion
Equipotential bonding
ESD/EOS
ESD safe
Power supply
Nominal power
700 W
Operating temp. range
10 to 40 ºC / 50 to 104 ºF
Weight and dimensions
Control Unit
148 x 184 x 140 mm / 4.93 kg
5.8 x 7.2 x 5.5 in / 10.86 lb
Package
474 x 368 x 195 mm / 6.01 kg
18.7 x 14.5 x 7.7 in / 13.25 lb
4.927 kg (10.86 lb)
6.010 kg (13.25 lb)
474 x 368 x 195 mm
