HDE-9B
Heavy Duty station

DISCONTINUED

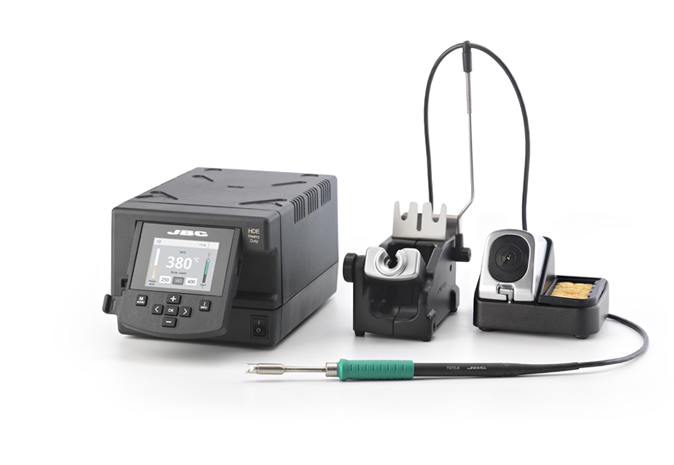

HDE-9B - Heavy Duty station
This is the ideal solution for high thermal demand or prolonged soldering applications such as the production of solar panels, multi-layered circuits and components of large dissipation surfaces.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes.

It features all the Excellence range benefits. The easy-to-use menu offers innovative functions to help you monitor the work in real time such as graphics or partial counters.

This station works with the comfortable T470 handpiece and C470 cartridges.

No cartridge supplied with this station.
Selectable parameters
Selectable temperature
90 to 500 ºC / 190 to 930 ºF
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature
Limit the temperature range in which the operator is allowed to work.
Temperatue levels
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering graphics
Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection
Keep station parameters protected against unauthorized access.
Connectivity
USB-B
Software PC / Traceability
USB-A
Firmware update Soldering Graphics management
Robot
RS-232 remote control or Smart Fume Extractor connection.
Equipotential bonding

ESD/EOS
ESD safe
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS

Power supply
Peak power
250 W
Operating temp. range
10 to 40 ºC / 50 to 104 ºF
Weight and dimensions
Control Unit
148 x 120 x 232 mm / 6.1 kg
5.8 x 4.7 x 9.1 in / 13.45 lb
Package
368 x 474 x 195 mm / 6.95 kg
14.5 x 18.7 x 7.7 in / 15.32 lb
6.354 kg (14.01 lb)
7.174 kg (15.82 lb)
368 x 368 x 195 mm
