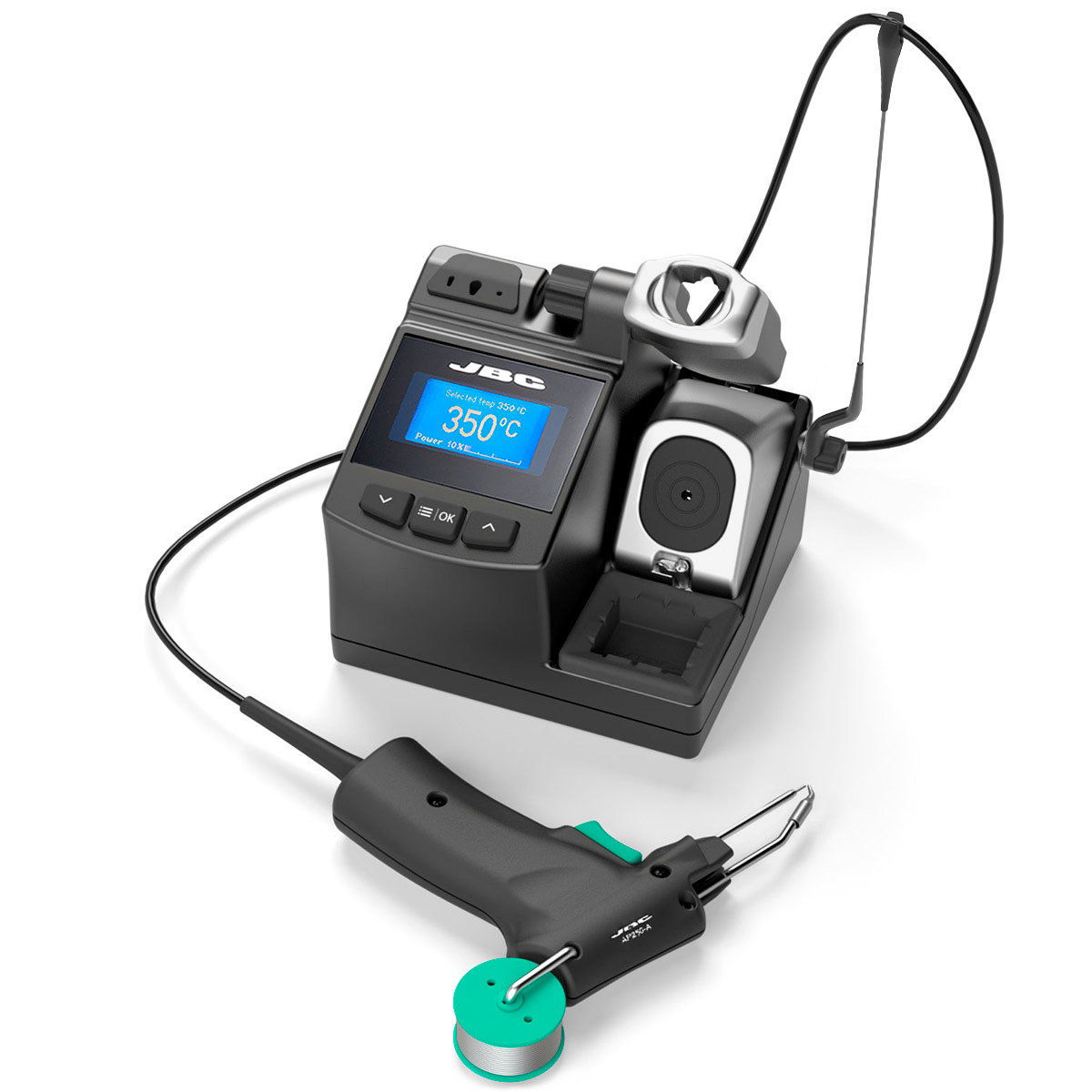

CA ANTERIOR
Solder Feed Station

This Station comes with the Solder Feed Iron AP250 and works with C250 Cartridges.

It suits for intensive soldering of THT components or for cable assemblies and is very useful when a free hand is required.

The Station comes with the JBC exclusive Heating System and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parametes.

It incorporates a USB connector (type B) to update station software and create graphs.

A complete Cleaning System with antisplash membrane and wiper with sponge is integrated.
Selectable parameters
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Solder compatibility
Wire diameter
0.8 to 1.5 mm / 0.02 to 0.07 in
Special features
These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature
Limit the temperature range in which the operator is allowed to work.
Temperatue levels
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection
Keep station parameters protected against unauthorized access.
Connectivity
USB-B
Software PC / Firmware update
Equipotential bonding
ESD/EOS
ESD safe
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
Power supply
Peak power
130 W - 23,5 V
Operating temp. range
10 to 40 ºC / 50 to 104 ºF
Weight and dimensions
Control Unit
150 x 175 x 145 mm / 2,67 kg
5.9 x 6.9 x 5.7 in / 5.88 lb
Package
234 x 234 x 258 mm / 3.15 kg
9.2 x 9.2 x 10.2 in / 6.94 lb
Cartridge Range
