Optimize your workflow
with fast and precise
PCB handling

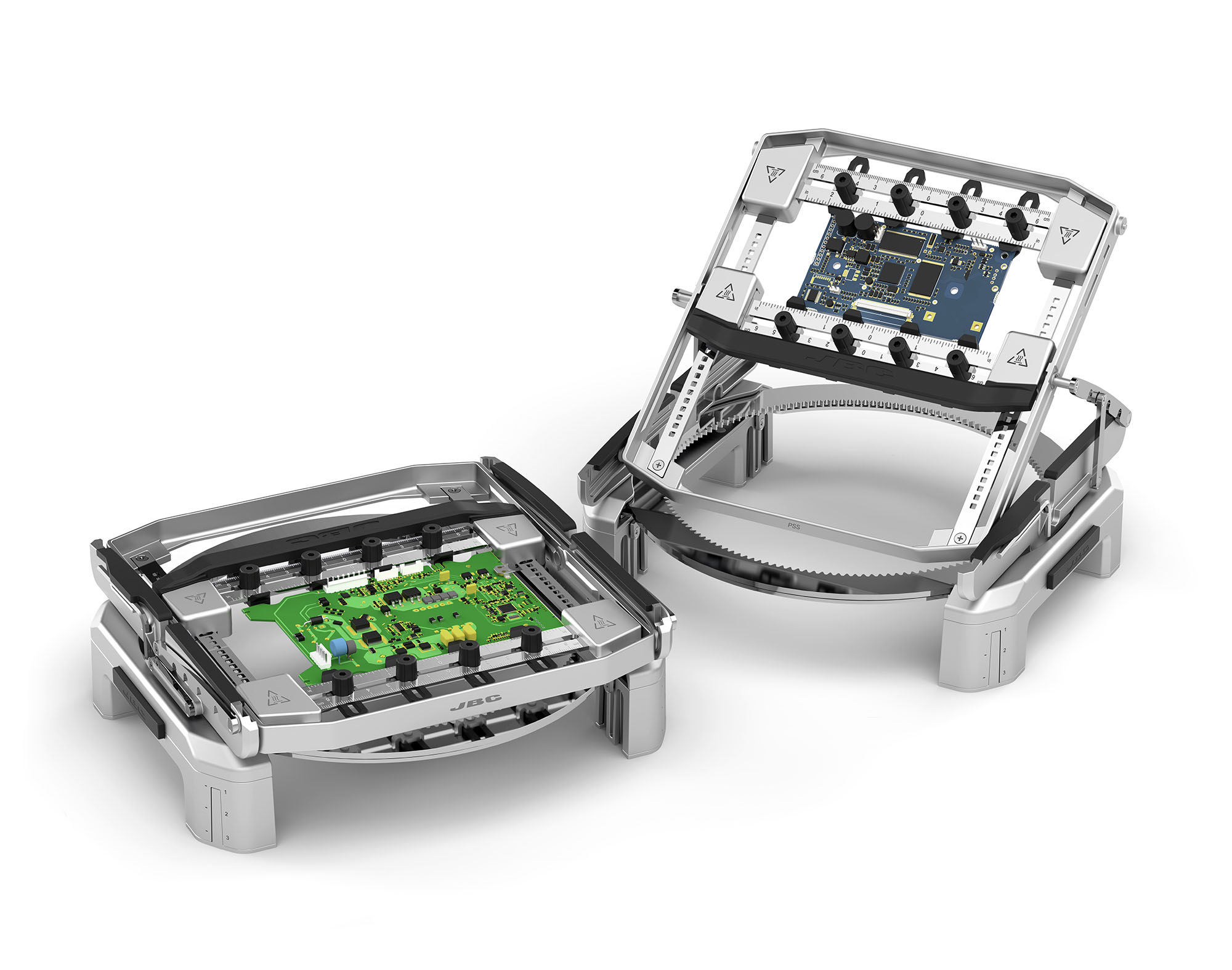

PSS Multiaxis Rotative
PCB Support

Optimize your workflow
with fast and precise
PCB handling

PSS Multiaxis Rotative
PCB Support

Rotate and flip PCBs effortlessly without
lifting them


Ideal for repetitive
soldering tasks.

Swivel your PCB horizontally and vertically


The fast-release system allows quick PCB extraction

Horizontal-axis swivel

Turn your PCB upside down (180º) in one movement. It is also posible to fix the support choosing between 4 different tilt positions: 25º, 35º, 45º and 55º.

Vertical-axis swivel

Position your PCB at any angle. It can be rotated in horizontal and inclined position.

Support that adjusts to your PCB

The slide guide adapts effortlessly and remains in place thanks to its self-fixing system. Securely fix (with low thermal transfer clamps) your PCB up to 130 x 130 mm / 5 x 5 in with adjustable elements.

Use with preheater

Set different heights to find your ideal position or to adjust the distance between the PCB and the heating area of PHSE Preheater.
The support allows you to work continuously on the PCB without waiting for it to cool down.

Set different heights to find your ideal position
or to adjust the distance between the
PCB and the heating area of PHSE Preheater.
The support allows you to work continuously on the PCB
without waiting for it to cool down.

Equipped with ESD
Connector for safer use

Connect the support to the ESD Common Grounding Point to protect your PCB from static electricity discharges.

Equipped with ESD
Connector for safer use

Connect the support to the ESD Common Grounding Point to protect your PCB from static electricity discharges.

Start optimizing your workflow


PSS Multiaxis Rotative PCB Support

Start optimizing your workflow with


PSS Multiaxis Rotative PCB Support

Start optimizing your workflow with


PSS Multiaxis Rotative PCB Support
